35 METER
FAST PATROL VESSEL
Compact Design
Extended Capabilities
Swift Response
Overview
The 35 Meter Fast Patrol Vessel (FPV) is a modern, robust, and efficient FPV, with a capability to operate in all major areas around the world. It is survivable up to sea state 6 at the best heading, and fully operational at sea state 4. The FPV’s high quality design focuses on reliability of operation and ease of maintenance while using topnotch components with a 10-year cycle. The hull and superstructure are constructed of all-welded aluminum alloy in accordance with ABS HSNC regulations. The hull includes 7 watertight bulkheads forming 8 watertight compartments. The boats run on #2 diesel fuel and can be refueled at sea using side-by-side procedures. The FPV’s fast speed, high maneuverability, and sophisticated command and weapon systems, are designed for surface warfare, coastal defense, and to respond to dispersed and persistent security threats such as terrorism, piracy, smuggling, illegal immigration and other threats.
Key Features
Multi-Mission Capable

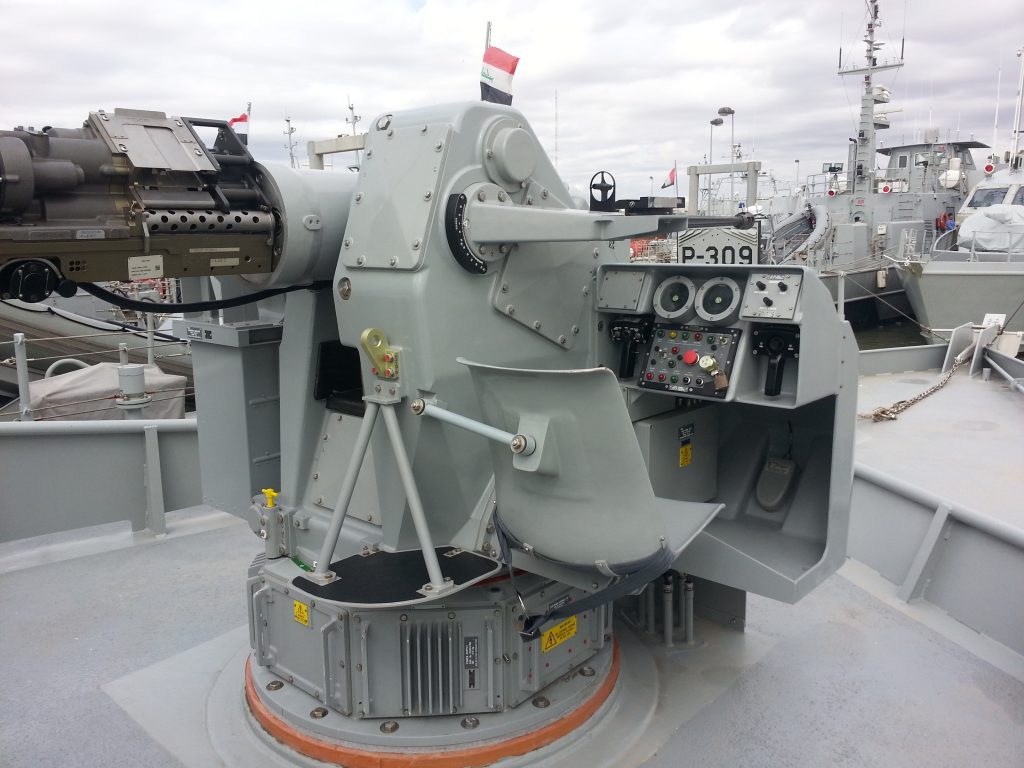

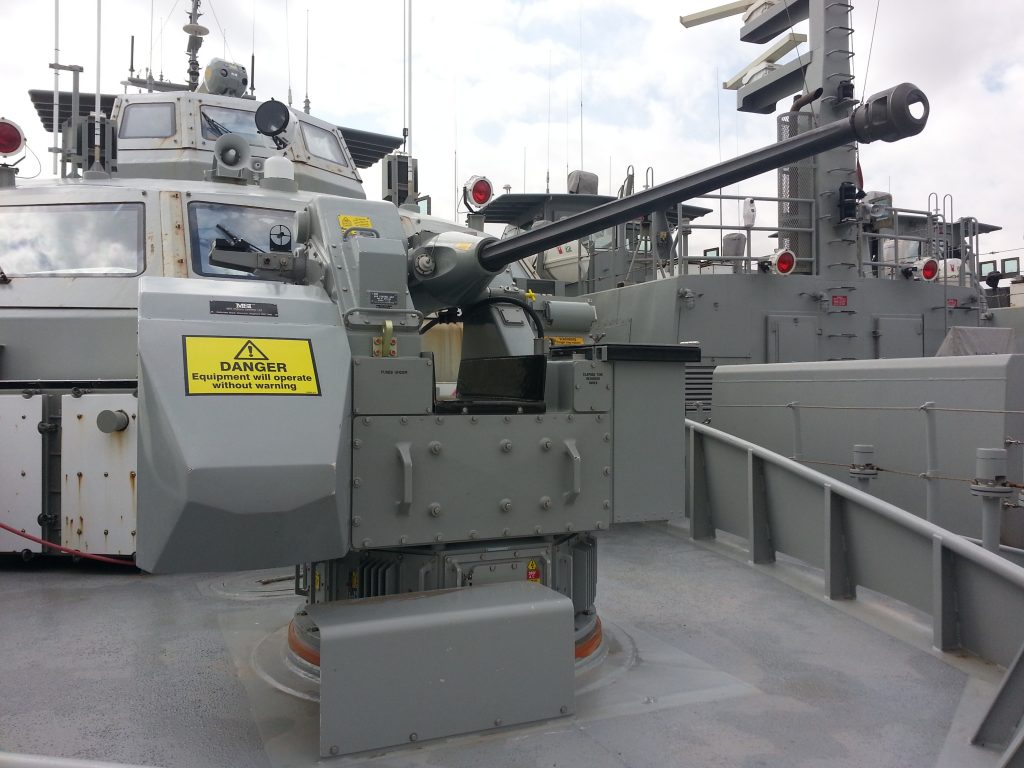

Main weapon system
1 x 30mm or 25mm ASELSAN Stabilized Naval Gun
Bridge
electronics with better space management
Mast
Cutting eage technology equipment

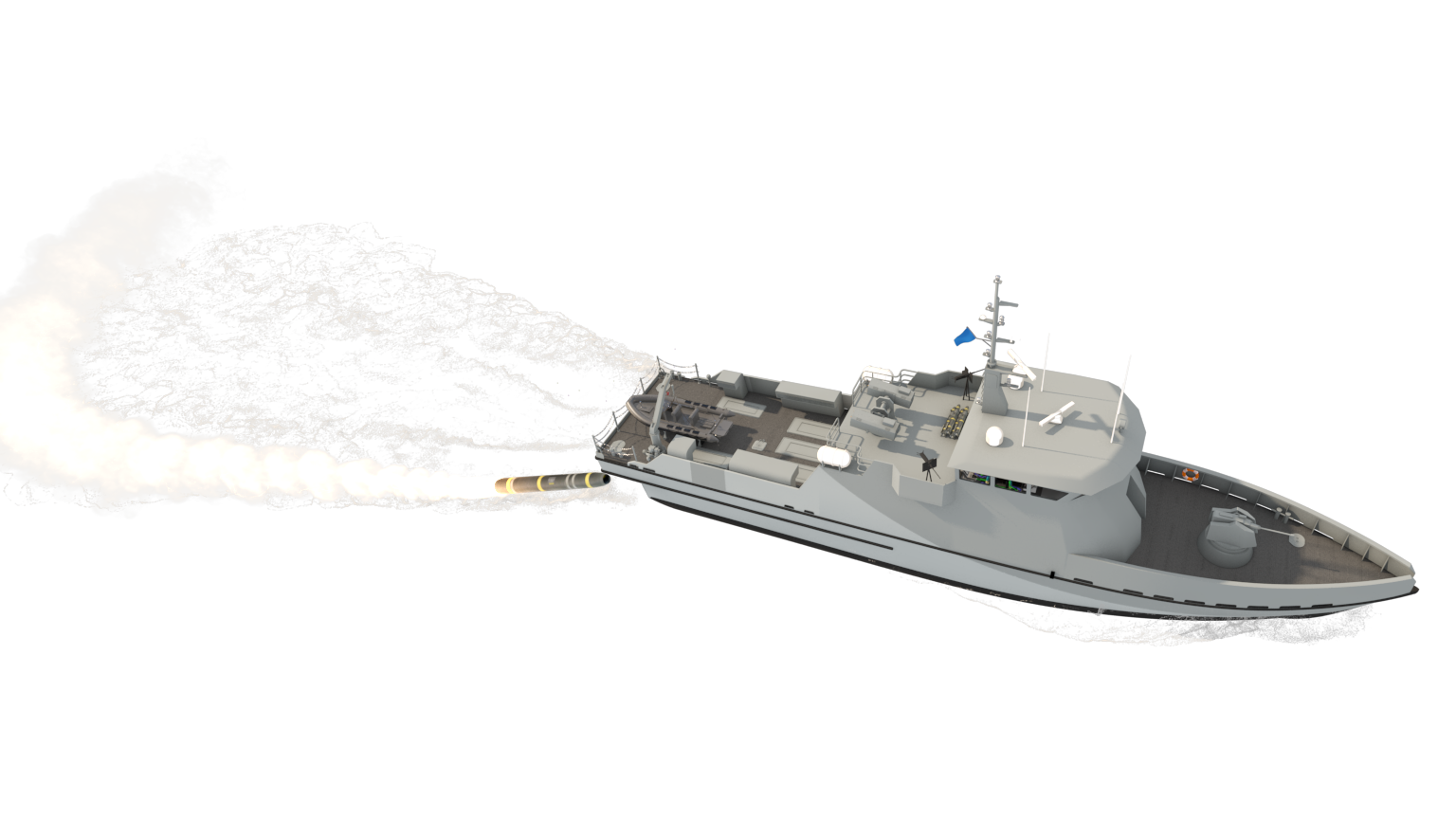

Missile launcher
Hell-Fire Missile launcher 360 degree launcher and long range targeting

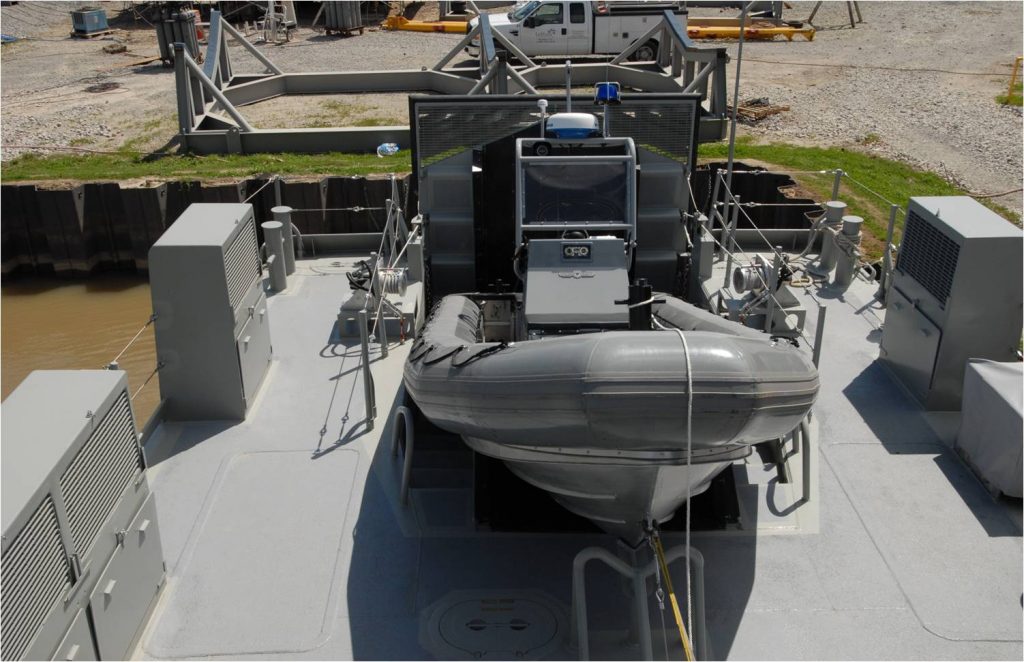

Davit and RHIB
6m RHIB and a fast deployment and recovery Davit
Machinary
3 x MTU16V2000 or 3 x Caterpillar C32B engines with 3 x FPPs or waterjets, and 2 x 99 KW diesel generators
Propulsion
This FPV comes in two configurations; propellers or waterjets
50Cal. machinegun
M2HB 50 caliber machinegun with ammo box
CIC Room
Contain RWS and Hell-fire Missile launcher controls devices
Technical Specification
|
|
|
|---|---|
|
LENGTH
|
115 Feet (35.06 Meter) |
|
BEAM
|
23.9 Feet (7.25 Meter) |
|
DRAFT
|
4.5 Feet (1.5 Meter) |
|
RANGE (12 KNOTS)
|
5,556 Kilometer (3,000 Nautical Mile) |
|
FUEL CAPACITY
|
7,500 Gallons (28,400 Liters) |
|
POTABLE WATER
|
500 Gallons (1,890 Liters) |
|
SPEED
|
Top Speed Options from 30 to 45+ Knots |
|
COMPLEMENT
|
|
|
MACHINERY
|
|
|
RESCUE BOAT & RAMP
|
|
|
ARMAMENT
|
|
|
SPECIAL OPTIONS
|
Vessel acquisition programs can include 90 days onboard, 2 years onshore and 2 years spare parts, CONUS and/or in-country maintenance and repair training, portable self-contained maintenance facilities and follow-on technical assistance in-country. |
|
ELECTRONICS
|
|
|
MANAGEMENT SYSTEM
|
|
Downloadable Resources
Watch Performance
Gallery
Related Programs
The Most Preferred Patrol Vessel

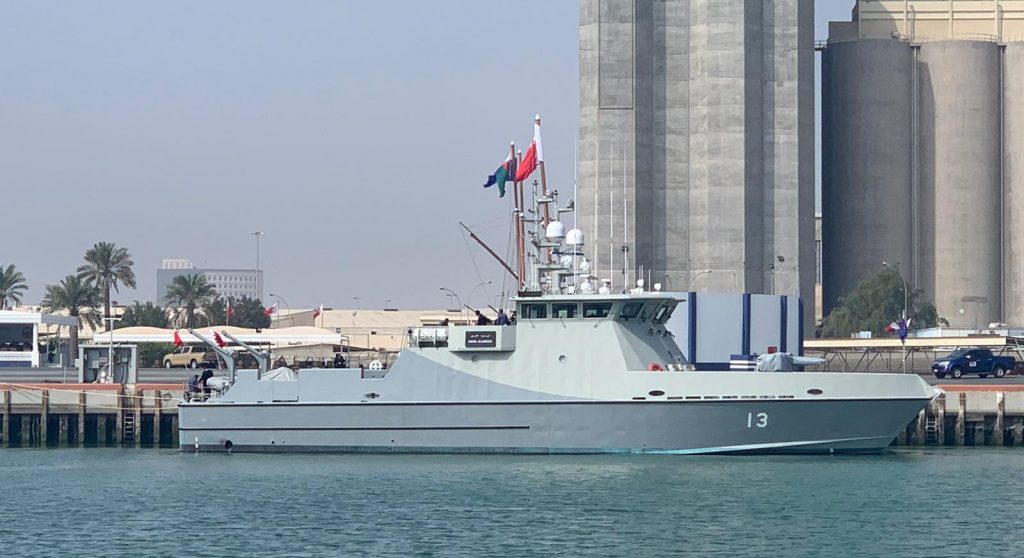

Swiftships 35m Fast Patrol Vessel (FPV35) is one of the most popular vessels in the world with over 33 hulls built to date. Swiftships’ FPV are considered leaders in the category due to is overall efficiency, high speed and maneuverability. We have built FPVs for the U.S. Air Force, Iraq, Bahrain, Dominic Republic and others. Recently we upgraded FPV35 model with the most advanced missile system that will further increase the vessel’s multi-mission capabilities. Learn more about our latest delivery to Bahrain Royal Navy, click here.
How can we work together?
Of course, we can build your vessels in our location! But if for some economic or strategic reasons, you choose vessels’ construction at your location – Swiftships can provide you with full support. We have extensive experience working with international clients on co-production programs, and we offer customized solutions to meet your needs. Learn more…
Other Platforms
We design, build, integrate, and maintain naval vessels for multiple missions: from border protection to lower-intensity threat missions and high-demand or high-threat law enforcement scenarios.
