20 meter
Hydrographic Survey Vessel
Conventional Propulsion
Maneuverable 'V' Hull Design
Fast & Stable
Hydrographic Survey - 20 Meter
Of course, we can build your vessels in our location! But if for some economic or strategic reasons, you choose vessels’ construction at your location – Swiftships can provide you a full support. We have extensive experience working with international clients on co-productions programs, and we offer customized involvement to meet your needs.
Design Licensing
- Access to over 120 Proprietary Designs
- Production Information and Historical Data
- Tested Hulls and Technology Transfer
Material Packages
- Kits, Components and Spare Parts
- First Class SuppliersÂ
- Just-on-Time and Reliable Deliveries
Building Assistance
- Capability Development and Roll-Out
- Transfer of Specialty Equipment & Systems
- Training Programs and Operations Management
Shipyard Design
- Modern and Digitized Shipyards
- Design and Construction Management
- Safety Standards & Environment Impact Studies
- Modern and Digitized Shipyards
- Design and Construction Management
- Safety Standards & Environment Impact Studies
Hydrographic Survey - 20M
Conventional Propulsion
Maneuverable 'V' Hull
Fast & Stable
Of course, we can build your vessels in our location! But if for some economic or strategic reasons, you choose vessels’ construction at your location – Swiftships can provide you a full support. We have extensive experience working with international clients on co-productions programs, and we offer customized involvement to meet your needs.
Design Licensing
- Access to over 120 Proprietary Designs
- Production Information and Historical Data
- Tested Hulls and Technology Transfer
Material Packages
- Kits, Components and Spare Parts
- First Class SuppliersÂ
- Just-on-Time and Reliable Deliveries
Building Assistance
- Capability Development and Roll-Out
- Transfer of Specialty Equipment & Systems
- Training Programs and Operations Management
Shipyard Design
- Modern and Digitized Shipyards
- Design and Construction Management
- Safety Standards & Environment Impact Studies
- Modern and Digitized Shipyards
- Design and Construction Management
- Safety Standards & Environment Impact Studies
Of course, we can build your vessels in our location! But if for some economic or strategic reasons, you choose vessels’ construction at your location – Swiftships can provide you a full support. We have extensive experience working with international clients on co-productions programs, and we offer customized involvement to meet your needs.
Design Licensing
- Access to over 120 Proprietary Designs
- Production Information and Historical Data
- Tested Hulls and Technology Transfer
Material Packages
- Kits, Components and Spare Parts
- First Class SuppliersÂ
- Just-on-Time and Reliable Deliveries
Building Assistance
- Capability Development and Roll-Out
- Transfer of Specialty Equipment & Systems
- Training Programs and Operations Management
Shipyard Design
- Modern and Digitized Shipyards
- Design and Construction Management
- Safety Standards & Environment Impact Studies
- Modern and Digitized Shipyards
- Design and Construction Management
- Safety Standards & Environment Impact Studies
Of course, we can build your vessels in our location! But if for some economic or strategic reasons, you choose vessels’ construction at your location – Swiftships can provide you a full support. We have extensive experience working with international clients on co-productions programs, and we offer customized involvement to meet your needs.
Design Licensing
- Access to over 120 Proprietary Designs
- Production Information and Historical Data
- Tested Hulls and Technology Transfer
Material Packages
- Kits, Components and Spare Parts
- First Class SuppliersÂ
- Just-on-Time and Reliable Deliveries
Building Assistance
- Capability Development and Roll-Out
- Transfer of Specialty Equipment & Systems
- Training Programs and Operations Management
Shipyard Design
- Modern and Digitized Shipyards
- Design and Construction Management
- Safety Standards & Environment Impact Studies
- Modern and Digitized Shipyards
- Design and Construction Management
- Safety Standards & Environment Impact Studies
overview

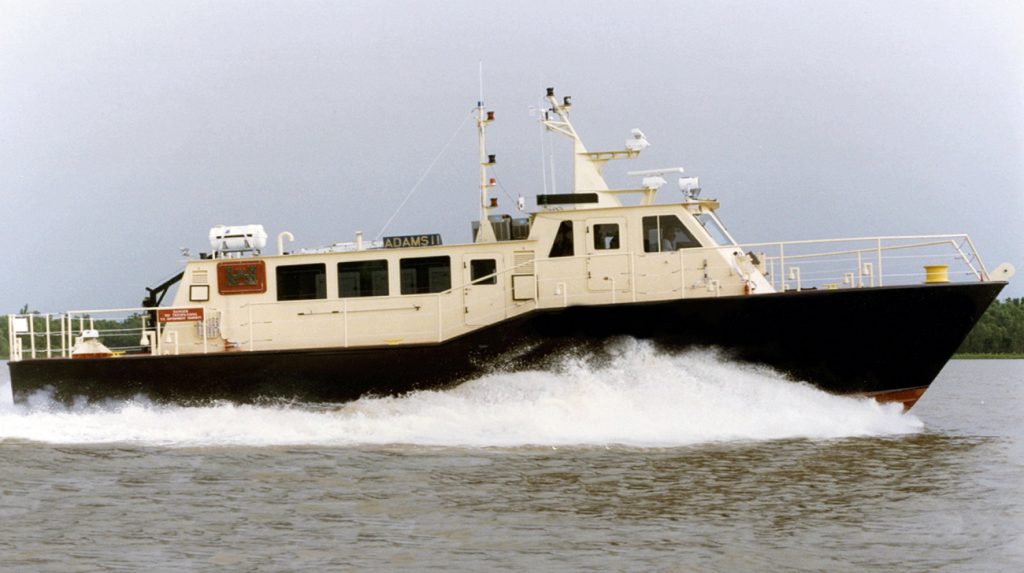

Swiftships’ 20 Meter Hydrographic Survey Vessel is a twin-screw diesel powered single chine vessel that provides a fast stable platform for hydrographic survey operations. Construction of the hull and superstructure is welded aluminum alloy, built in accordance to approved codes and regulatory standards. The vessel features on the lower level a walk-in engine room, full galley and mess, and a berthing area. On the main deck a large survey data collection is located aft of the raised pilothouse. The working deck area connects directly to the survey data collection room. Ride, comfort and maneuverability are all characteristics of this deep ‘V’ hull design. In addition, the lifting strakes and stern wedge help the vessel maintain an even trim throughout a wide speed range. Outfitting is to the highest commercial standard with heavy emphasis on noise suppression.
Specs | Metric | Imperial | LOA | 20 m | 65′ |
|---|---|---|
BEAM | 5.6 m | 18.3′ |
DRAFT | 1.5 m | 5′ |
RANGE | 741 km | 400 n.m. |
FUEL CAPACITY | 9,085 liters | 2,400 gallons |
PORTABLE WATER | 984 liters | 260 gallons |
SPEED | 20 knots (Normal Load) | |
COMPLEMENT | 5 crew | |
Specs | Metric | Imperial | LOA | 20 m | 65′ |
|---|---|---|
BEAM (incl. Fenders) | 5.6 m | 18.3′ |
DRAFT | 2.13 m | 6’9″ |
RANGE | 3333.6 km | 1,800 miles |
DEPTH | 3.04 meter | 9’9″ |
FUEL CAPACITY | 9,085 liters | 2,400 gallons |
POTABLE WATER | 984 liters | 260 gallons |
SPEED | 20 knots (Normal Load) | |
COMPLEMENT | 5 crew | |
Machinery
- Main Engine: Two (2) Caterpillar marine diesel engines, Model C18, rated 1000 HP at 2300 RPM each.
- Generators: Two (2) Northern Lights Generator 55 kW, 220/380 VAC, 50 Hertz, three phase diesel generator set
HYDROGRAPHIC EQUIPMENT
- Multibeam system
- Single beam system
- Sub-bottom profiler
- Side scan sonar system
- Sound velocity profiler
- Magnetometers
- Pressure tide gauge
- Positioning & attitude sys.
- Data acquisition system
- Data processing system (Supplied by SAIC)
Communication and Navigation
- One (1) VHF/FM Radio
- One (1) SSB Radio
- One (1) VHF/UHF Radio
- One (1) Intercom/Loudhailer
- Two (2) Radars
- One (1) Fathometer
- Two (2) DGPS
- One (1) Anemometer
Features (optional)
- Vessel acquisition programs can include 90 days onboard, 2 years onshore and 2 years spare parts.
- CONUS and/or in-country maintenance and repair training;
- Portable self-contained maintenance facilities and follow-on technical assistance in country.
- A land-based mapping center is available to consolidate data from at sea mapping.
- Coastal hydrographic mapping charts can be produced.
